CSI 9330 Machinery Health Transmitter
The CSI 9330 interfaces with existing plant monitoring systems while continuously monitoring critical machinery.
• Continuously monitors critical machinery in process applications and other industrial environments
• Interfaces with existing alarm, control and monitoring systems
• Integrates with the CSI 2130 Machinery Health Analyzer to create a seamless predictive maintenance environment
• CSI 9330VP detects mechanical faults and provides early warning of bearing and gear faults
• CSI 9330VT detects mechanical faults and increases in temperature

Overview
Gain more visibility to vibration levels in your critical machinery. The CSI 9330 Machinery Health Transmitter is a continuouslyoperatingm vibration transmitter that interfaces with existing plant monitoring systems while automatically detecting vibration levels. When connected to the CSI 2130, you can view the vibration data in AMS? Suite: Machinery Health Manager to. utilize predictive diagnostics and improve maintenence efficiency. Preserve machinery health while reducing costly downtime.
The rugged CSI 9330 is a quick and easy installation to any machine. Once installed, it converts the analog output of an ICP? accelerometer into a 4-20 mA signal, proportional to monitored vibration. Vibration data is available in plant data historians and/or control systems for trending
and analysis with other process parameters. With the CSI 9330, you will gain continuous access
to real-time data for early detection of developing mechanical issues.

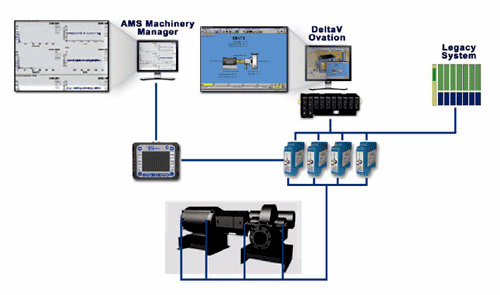

Machinery Health Management
The CSI 9330 delivers overall data to any control or automation system using industry standard 4-20mA wiring, while the
CSI 2130 connects to the analog vibration output to enable spectrum analysis.

Detect Mechanical and Impacting Faults
The CSI 9330 Machinery Health Transmitter allows for continuous monitoring of a wide variety of plant and mill machinery, including motors, fans, cooling tower fans, pumps, and compressors. The CSI 9330 connects to a standard accelerometer and can be configured to deliver any desired standard vibration and/or temperature value.
The vibration or temperature value can then be delivered to a PLC, SCADA system, or DCS using common 4-20 mA wiring.
The CSI 9330 is available in two configurations. The CSI 9330VT
deploys on any measurement location where vibration and/or temperature is desired. It detects mechanical faults such a
imbalance and looseness as well as increases in temperature. The CSI 9330VT delivers a vibration value, such as overall velocity and also a temperature value when connected to an accelerometer nthat contains an embedded temperature sensor.
The CSI 9330VP deploys on rolling element bearings and gear measurement points. It detects mechanical faults as well as impacting faults due to bearing and gear problems. The CSI 9330VP delivers a vibration value, such as overall velocity, and a PeakVue? value. PeakVue is a patented technology that successfully detects early stage rolling element and gear tooth wear.

Specifications
Performance
	English	SI
Overall Vibration Output (Linear Scale)	4-20 mA
Fault Vibration Output (Log Scale)	4-20 mA
Zero	4 mA 2% of Span
Span	16 mA + 5 %
Frequency Response (Overall Vibration)	10 Hz to 1000 Hz
Frequency Response (Fault)	1000 Hz or 5000 Hz to 10k Hz
Fault Detector Range	50 g pk
Raw Vibration Output	+ 0.01% of Input Vibration
Output Maximum Load Resistance	500 ohm
Environmental
Warm Up	< 2 Minutes
Operating Temperature Range	+32 to + 158o F	0 to + 70o F
Storage Temperature Range	-40 to + 257o F	-40 to + 125oC
Relative Humidity	< 95% (Non-condensing)
Electrical
Power Supply Voltage	24 VDC
Power Supply Current	150 mA max
ICP Input Signal	100 mV/g
ICP Sensor Excitation	24 VDC/4 mA, + 1 V/+1 mA
Physical
Case Dimension (W x H x D)	0.9 x 3.9 x 4.5 in	22.5 x 99 x 114.5 mm
Weight	5.2 oz	145.2 grams
Input/Output Electrical Connectors	Removable Screw Terminals
Raw Vibration Connector	BNC Jack
Screw Terminal Wire Size	24 - 14 AWG	0.2 - 2.5 mm2
DIN Rail Mount	1.38 in	35 mm
Power Indicator	Green LED
