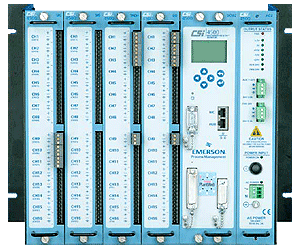

THERMOSCAN CO.,LTD. HOME VIBRATION ANALISIS VIBRATION SERVICES VIBRATION PRODUCT VIBRATION TRAINING VIBRATION CONTACT VIBRATION PRODUCT :  CSI 4500 | CSI 6000 | CSI9210 | CSI9330 | CSI 1850 | CSI 2130 | CSI 5200 | MotorView CSI 4500 Machinery Health™Monitor • Automated, continuous, predictive machinery health monitoring of your plant’s most critical rotating machines • Real-time machinery health feedback integrates to process control so you can run your process with confidence • Field-based intelligence and event-based adaptive monitoring transforms vibration monitoring into predictive machinery health alerts • PeakVue? provides unique bearing fault detection capabilities to maintenance personnel • Transient analysis for turbines empowers decisions through the live turbine dashboard like nothing on the market CSI 4500MS Machinery Health Monitor Enclosure Specifications PN A4500MS Overall System Characteristics Enclosure Dimensions Environmental Ratings 11" width x 16.00" height x 11.56" depth 180? opening required for enclosure door 0 to 100?F (-17 to 50?C); 0 to 120?F (-17 to 60?C) w/ fan tray accessory (PN B4500FT) 0 - 95% R.H. noncondensing CE EN50081-2 Emissions CE EN50082-2 Immunity   • PlantWeb Alerts give clear, powerful indications of developing problems to an operator at a DeltaV station. • The CSI 4500 provides machinery prediction that complements an existing protection system. • Calendar rolls, winders, nip rolls, vacuum rolls, and changing machine speeds require event-based adaptive monitoring. Overall System Characteristics Input Power 120 – 240 VAC 50/60 Hz System Power Dissipation < 25 watts for 32 signals, 16 tachometers, 16 relays < 55 watts with optional fan tray and aux power fully loaded < 80 watts with optional transient processor Optional Accessory Output Power -24 vdc @ 0.6A for displacement probes CSI 4500 Chassis Dimensions 13.975" width x 12.2" height x 8" depth Chassis Card Slots Chassis Card Slots Options PeakVue? Bearing and Gearbox PN Fault Detection Technology A474504 Fan Tray PN B4500FT 19” Rack Mount Option D25051 (Qty 2 per rack)
