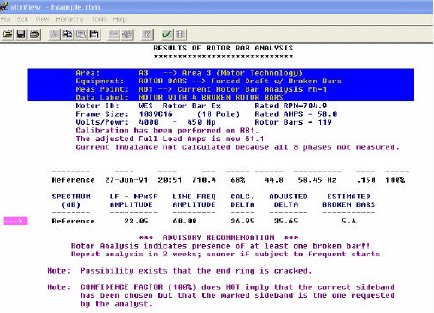

VIBRATION PRODUCT : CSI 4500 | CSI 6000 | CSI 9210 | CSI 9330 | CSI 1850 | CSI 2130 | CSI 5200 | MotorView MotorView Safe and Non-Intrusive motor analysis  • Program that analyzes the frequency spectra of a motors electrical supply current to detect rotor related electrical faults. • Detect possible fault of broken rotor bars, high resistance joints, voids in aluminum cast rotors, and cracked rotor end rings in squirrel-cage induction motors. • Using Flux measurement, avoid opening electrical panels and contact with live leads • Utilize CSI 2130 Machinery Manager platform, thus future expandable to other technology such as vibration, balancing and alignment system • Measurement result can be integrated with other technology such as vibration, thermography, motor diagnostic, ultrasonic, balancing and alignment • Create database with RBMWizard fore easy and quick program start-up Features • Automated analysis and recommendation • Analyze input from flux coil, current clamp and temperature probe • Selection of current clamp for 0.1 to 1000 Amp • Automatically calculate actual running speed • Store spectrum and waveform data for manual analysis • Using 2130, capable to provide High FFT Resolution up to 12800 Lines |
|||||||
   |
