A small infrared revolution
The FLIR i7 from FLIR Systems, is a small, competent and affordable infrared
camera. It is incredible easy to use and requires no former experience. The FLIR
i7 features a robust combination of capabilities to quickly detect moisture issues,
missing insulation, HVAC leaks and when performing predictive maintenance
identifying electrical or mechanical problems.
FLIR i7 Features
• High accuracy
? 2% and thermal sensitivity of 0.1?C helps you find problems faster and easier — critical for condition monitoring of thermally sensitive targets
• Extremely lightweight (340 g)
Resulting in less user fatigue
• Easy-to-use
Pocket sized and fully automatic design makes it incredibly easy-touse even for first time users — perfect for general purpose use
• Focus free lens
For convenient viewing
• High Resolution LCD
2.8”color LCD
• Double Molded Design
Rugged design with easy grip handle construction meets IP43 dust/ splashproof standards
• Measurement Modes
Spot (center), Area (Min/Max), and Isotherm (above/below)
• Battery Operating Time
5 hours continuous operation on a single charge for uninterrupted inspections
• Large Memory Storage
MicroSD card stores up to 5000 Radiometric JPEG format images. Each image can be analyzed using
the included QuickReport? PC Software
Application Areas

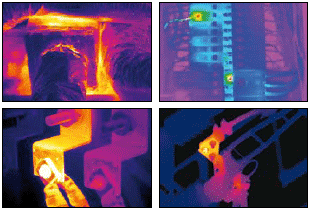

• Predictive Maintenance — Thermal imaging is a
valuable tool in predictive maintenance of electrical,
mechanical and structural problems and can also be
used to verify repairs.
• Energy Saving — Energy costs are increasing at a
substantially alarming rate. Missing or low quality
insulation, inadequate Heating, Ventilation, and Air
Conditioning (HVAC) systems, poor air flow — all are
typical problems that cause homes to waste energy.
| FLIR i7 Technical Specifications | |
| Features | |
| Temperature range | 0?C to 250?C (32?F to 482?F) |
| Image Storage | 5000 Images (microSD card memory) |
| Emissivity | Emissivity Table; 0.1 to 1.0 adjustable |
| Imaging Performance / Image Presentation | |
| Field of view/min focus distance | 25? x 25?/0,5 m |
| Focus | Focus free |
| Thermal sensitivity (N.E.T.D) | <0.1?C at 25?C |
| Detector Type | 120 X 120 pixels Focal plane array (FPA) uncooled microbolometer |
| Spectral range | 7.5 - 13?m |
| Display | 2.8” color LCD |
| Image Controls | Palettes (Iron, Rainbow, and Black/White) |
| Set-up controls | Date/time, ?C/?F, 21 languages |
| Measurement modes | Spot (with correction for emissivity and reflected temperature), Area (Max/Min), Isotherm (above/below selected temperature interval) |
| Battery Type | Li-lon |
| Battery operating time | 5 hours, Display shows battery status |
| Charging system | In camera, AC adapter; 3 hours to 90% capacity |
| AC operation | AC adaptor 90-260VAC, 50/60Hz |
| Adaptor Voltage | 5 VDC output to camera |
| Operating temperature range | 0?C to 50?C (32?F to 122?F) |
| Storage temperature range | -40?C to 70?C (-40?F to 158?F) |
| Humidity | Operating and storage 20% to 80%, non-condensing, IEC 359 |
| Shock | 25G, IEC 68-2-29 |
| Vibration | 2G, IEC 68-2-6 |
| Dimensions/Weight | |
