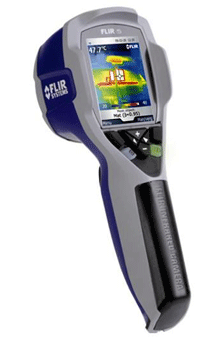

A small infrared revolutionThe new i5 from FLIR Systems is the smallest, lightest and most affordable infrared
camera on the market. It is incredibly easy to use and requires no former experience.
It really is a matter of “point-shoot-detect” to obtain high-quality infrared images that
will immediately give you the infrared information you need.
Save time and money in 3 steps:
Not magic... impressive technology
Infrared radiation (IR) is emitted by every object above a temperature of -273?C.
The human eye cannot detect infrared radiation, but an infrared camera can. It can
take pictures of objects to show the amount of heat they are emitting. Such pictures
consist of a map of colours that show surface temperatures of the object. An infrared
camera is an invaluable diagnostic tool in a variety of industries, as it can detect abnormally
hot or cold areas or components. In other words, you can detect problems that
are not normally visible with the naked eye.
The benefits of infrared
An infrared camera is a powerful maintenance tool,as in many instances equipment failure is preceded by a period of increasing
heat. An infrared camera is alsoan excellent building inspection instrument, it quickly scans and identifies problem areas that can't
be seen by the naked eye. It is also used for repair verification and insurance purposes. An infrared camera gives you the following
benefits:
• Detect hidden problems, make quick damage assessments and perform preventive inspections
• Survey buildings to find moisture and leaks
• Identify energy losses and poor insulation
• Spot electrical faults before it is too late
• Produce instant infrared images of your findings
• Create reports, analyse and document your findings with the easy-to-use software
Flexible recording and PC connectivity:
• Single image JPEG storage to SD Card
• USB file transfer to PC
• Compatible with FLIR Reporter 8 and FLIR QuickReport software
Measurement:
• Full temperature measurement ranges up to 250 ?C as standard
• Standard range of measurement tools:
– Spotmeter
– correction for emissivity and reflected temp.
– emissivity table
| FLIR i5 Technical Specifications | |
| Imaging and optical data | |
| Field of view (FOV) | 17? ? 17? |
| Thermal sensitivity/NETD | < 0.1?C (0.18?F) |
| Image frequency | 9 Hz |
| Focus / min focus distance | Focus free / from 0.6 m (2 ft.) |
| Detector data | |
| Detector type | Focal plane array (FPA), uncooled microbolometer |
| Spectral range | 7.5–13 ?m |
| IR resolution | 80 ? 80 pixels |
| Image presentation | |
| Display | 2.8 in. color LCD |
| Image Adjustment | Automatic adjust/lock image |
| Measurement | |
| Object temperature range | 0?C to +250?C |
| Accuracy | ?2?C or ?2% of reading, |
| Measurement functions | Spotmeter, correction for emissivity and reflected temp.,emissivity table |
| Set-up | |
| Menu commands | Palettes (black and white, iron and rainbow), C/F, language, date and time format |
| Image storage | |
| Image storage type | miniSD Card |
| File formats | Standard JPEG, 14-bit measurement data included |
| Compatible with FLIR software | FLIR Reporter 8 and FLIR QuickReport |
| Data communication interfaces | |
| Interfaces | USB Mini-B, Data transfer to and from PC |
| Power system | |
| Battery type | Rechargeable Li Ion battery |
| Rechargeable Li Ion battery | Approx. 5 hours at +25?C ambient temp. and typical use |
| Environmental data | |
| Operating temperature range | 0?C to +50?C |
| Storage temperature range | -40?C to +70?C |
| Humidity (operating and storage) | IEC 60068-2-30/24 h 95% relative humidity |
| Encapsulation | Camera housing and lens: IP 43 (IEC 60529) |
| Bump / Vibration | 25 g (IEC 60068-2-29) / 2 g (IEC 60068-2-6) |
| Physical characteristics | |
| Weight | 340 g |
| Size, L x W x H | 223 mm x 79 mm x 83 mm |
